Brand Name : SZSSTH, Solar Energy System
Model Number : SZSSTH-2000W
Place of Origin : Guangdong, China
Price : CN¥8,215.09/pieces 1-19 pieces
Free installation service : NO
Application : Home, Home Solar Power System
Solar Panel Type : Monocrystalline Silicon
Battery Type : GEL Battery
Controller Type : MPPT
Mounting Type : Ground Mounting
Load Power (W) : 2KW
Output Voltage (V) : 100V/110V/120V/220V/230V/240V
Output Frequency : 50Hz/60Hz
Pre-sales project design : N
Mounting System : Pitched Roof (STD)
Wave Form : Pure Sine Wave
AC Voltage : 100-240V(Adjustable)
Peak Power : 6000W
Battery Voltage : 48VDC
Communication : RS485
System Type : Off-grid Solar Power Generation
Service : OEM ODM Accept
2KW Home On/Off Grid Solar Energy System – Adjustable Voltage 120V/220V/230V/240V
Products Description

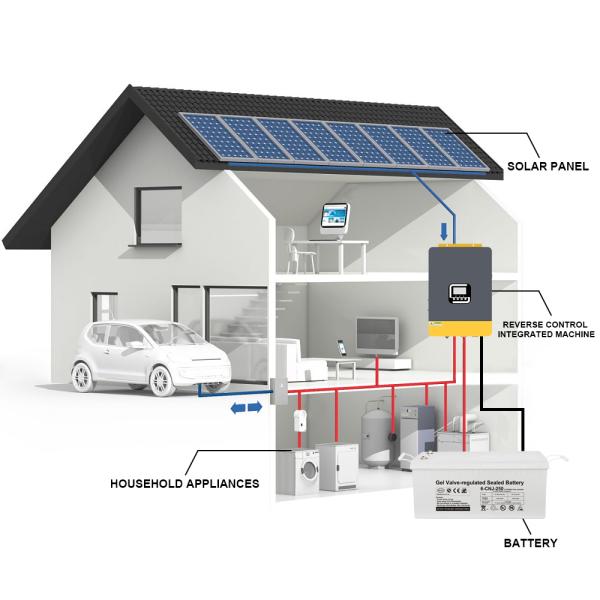

How the solar system working :
This Solar system not only have solar power system function, but also have Utility complementary function. When main power off , the solar system can switch automatically to take use off solar power from battery to run load, When solar power not enough and power off , it can switch automatically to main power and connect with grid electricity take use of main power .at the same time charging battery. This is very suit for home use.
2000W solar power generation system
Daily power generation of 7.2 kWh
6 kWh of stored electricity
(Calculated based on 5 hours of effective lighting)
Package configuration list
| Component | Quantity |
|---|---|
| 2000W Solar Inverter | 1 unit |
| 450W Solar Panels | 4 pieces |
| 12V250Ah Gel Batteries | 2 pieces |
| 20m Red and black dedicated photovoltaic cables | 1 set |
The installation area of the components is approximately 10 square meters
Electrical appliances with resistance less than 2000W, and electrical appliances with inductance less than 650W
| Appliance Type | Computer | Fan | TV | Rice Cooker |
|---|---|---|---|---|
| Power/Capacity | 750W | 1200W | 200W | 600W |
| Estimated duration | About 8 hours | about 5 hours | about 30 hours | about 10 hours |
Note: The above usage time is for individual use and is calculated proportionally during use. Theoretical values are tested for reference only.
